RM199.00 - RM249.00
FANTECH PSB650 / PSB550 Power Supply Shadow Power Supply with Low Noise Fan for Computer Desktop
Price RM199.00 - RM249.00
Product SKU psb550/psb650
Size (L x W x H) 30 cm x 20 cm x 13 cm
Availability In Stock
MODEL
Quantity
Description

Low Noise Fan with Free power cable flat design PSB550 SHADOW for Computer Desktop setup

Hydraulic Brearing Fan

Active PFC

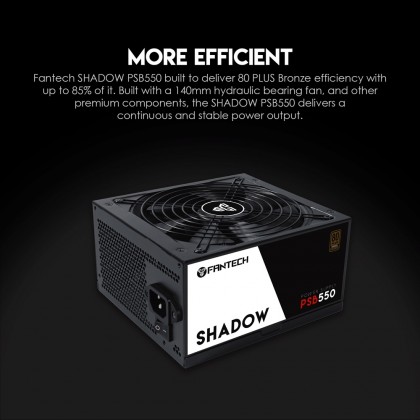

80 Plus Bronze

Flat Cable Design

Low Noise Fan

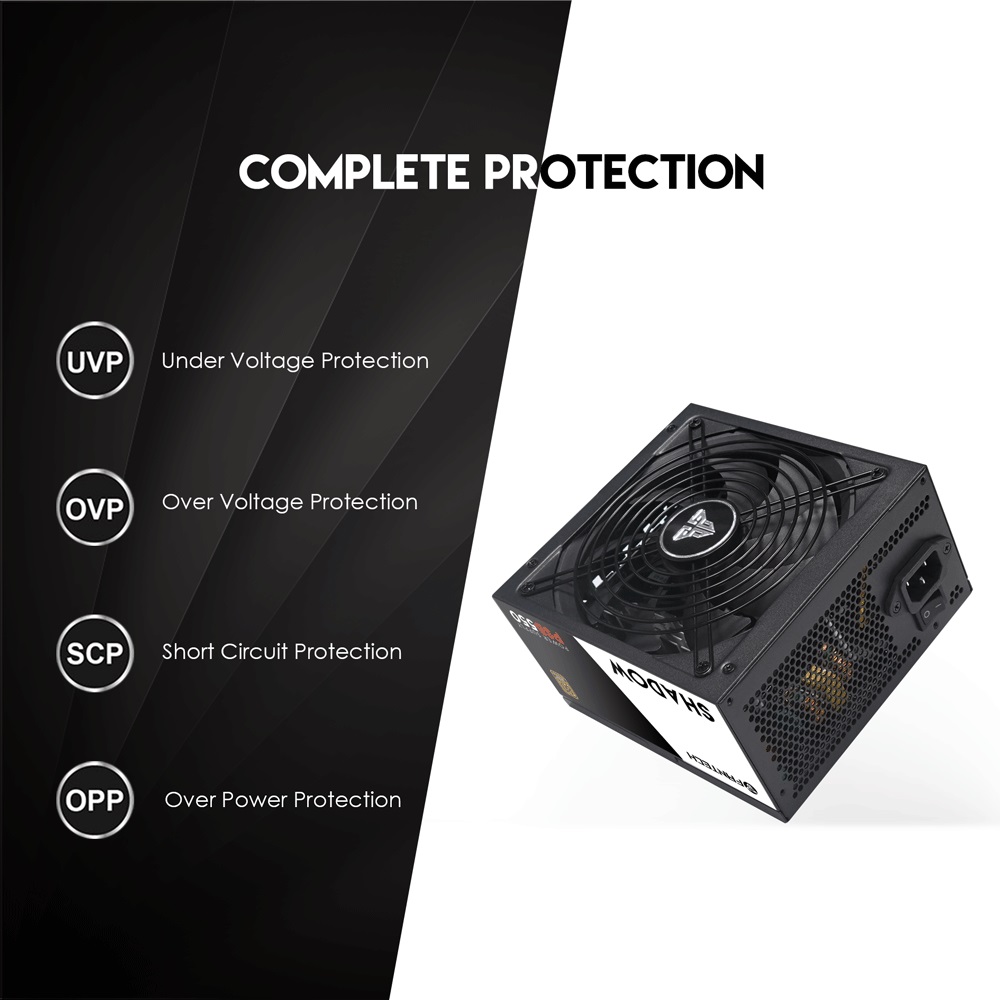

Under Voltage Protection

Over Voltage Protection

Short Circuit Protection

Over Power Protection

Form Factor : Intel ATX 12V

Dimension : 160mm(L) x 150mm(W) x 86mm(H)

Fan Size : 140mm



PSB650 Shadow:

specification:

1: Power supply size: 160mm * 150mm * 85mm

2: Power standard: Intel ATX 12V

3: Applicable to CPU range: AMD, Intel

3: Efficiency: 80%

4: Input voltage: 200V-240Vac / 6A Max

5:+ 3.3V output current 21A

+ 5V output current 20A

+ 12V output current 52A

- 12V output current 0.3A

+ 5Vsb output current 2.5A

6: Support wide voltage: Yes

7: Support temperature control PWM: Yes

9: Product weight: 2040g

10: Support power: 20P / 24P motherboard

11: Power Output Design: Multiplex + 12V



PSB650 Shadow:

specification:

1: Power supply size: 160mm * 150mm * 85mm

2: Power standard: Intel ATX 12V

3: Applicable to CPU range: AMD, Intel

3: Efficiency: 80%

4: Input voltage: 200V-240Vac / 6A Max

5:+ 3.3V output current 15A

+ 5V output current 18A

+ 12V output current 44A

- 12V output current 0.3A

+ 5Vsb output current 2.5A

6: Support wide voltage: Yes

7: Support temperature control PWM: Yes

9: Product weight: 2040g

10: Support power: 20P / 24P motherboard

11: Power Output Design: Multiplex + 12V

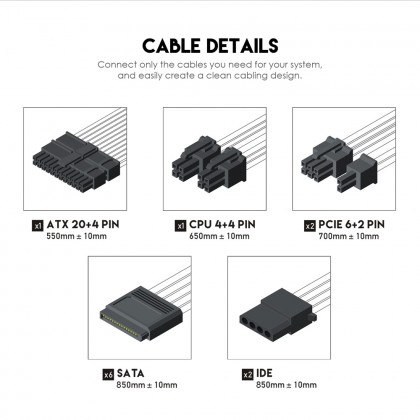

Include :

ATX 24 pin Connector: 1

EPS 4+4 pin Connector: 1

PCI-E 6+2 pin Connector: 2

SATA Connector: 6

IDE Connector: 2
